Product Details

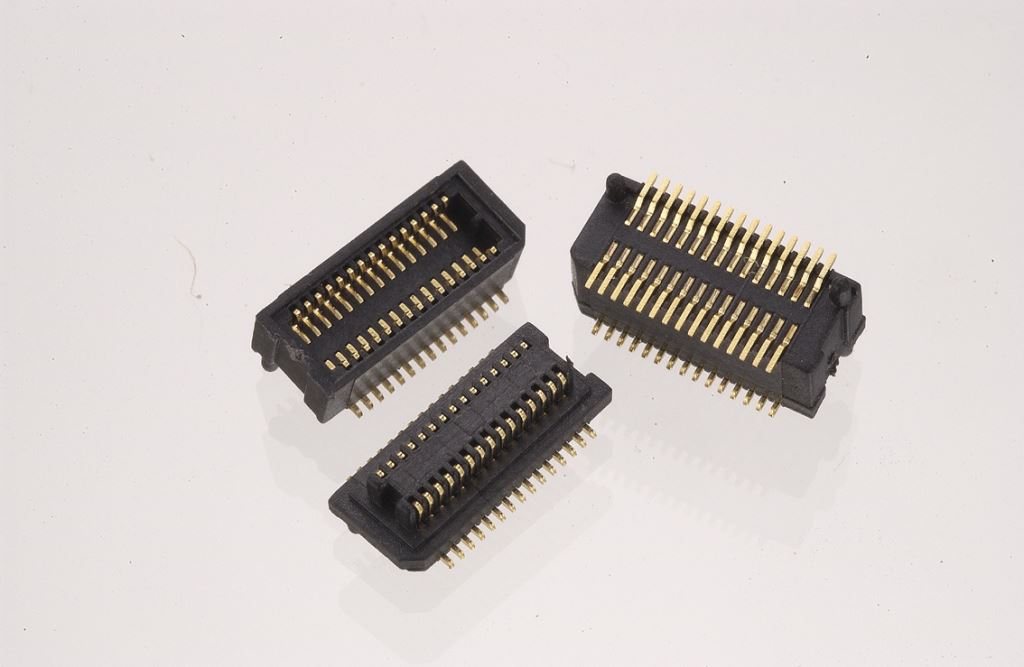

0.8mm Pitch Board-To-Board Connector, H:4.6mm

  • Model:BTB-0846-B-RC1
  • 0.8mm Pitch Board-To-Board Connector Female + Male Height = 4.6mm / 10~100PIN

Product Introduction

NOTE
A. Material:
  1. Housing : Nylon-9T Halogen Free, UL94V-0, Black
  2. Contact : Copper Alloy
B.Plating: Gold plating
C.Temperature: -55° to 125°
D.Electrical:
  1. Voltage : 100V.
  2. Current : 0.5A.
  3. Contact Resistance : 40m Ω max.
  4. Dielectric Withstanding Voltage : 500V AC / 1 min.
  5. Insulation Resistance : 100M Ω min.
E.Available Pins : 10~100 Contacts
