Product Details

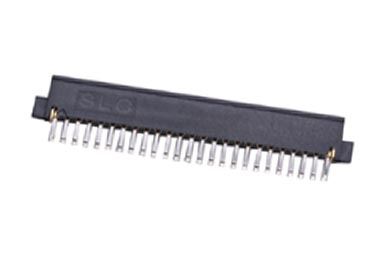

CF Female Connector, Offset:0.0mm, Keeping type

Model：8690-K0050X-0
Straddle/Keeping Type
File Download

Product Introduction

NOTE
Material / Connector :
1. Housing:HTN, UL94V-0 related. Black
2. Contact / terminal: 0.10mm thick Phosphor Bronze.
3. Plating: Gold plated on contact touch area.
                   Solder tail: 100u" Sn

Characteristic:
1. Compatible with CFA Standard.
2. Temperature: -20°C ~ +85°C degrees.

Mechanical Spec. :
1. Contact Retention Force: 4.9N Min (per circuit)
2. Mating Force: 28.8N Max. (total)
3. Un-mating Force:4.9N Min (total)

Electrical Spec.:
1. Current:.0.5Amp Max.
2. Voltage: 100VAC Max.
3. Contact resistance: 40m ohm max.
4. Dielectric Withstanding Voltage : 500VAC(RMS)
5. Insulation Resistance : 1000M ohm min.
